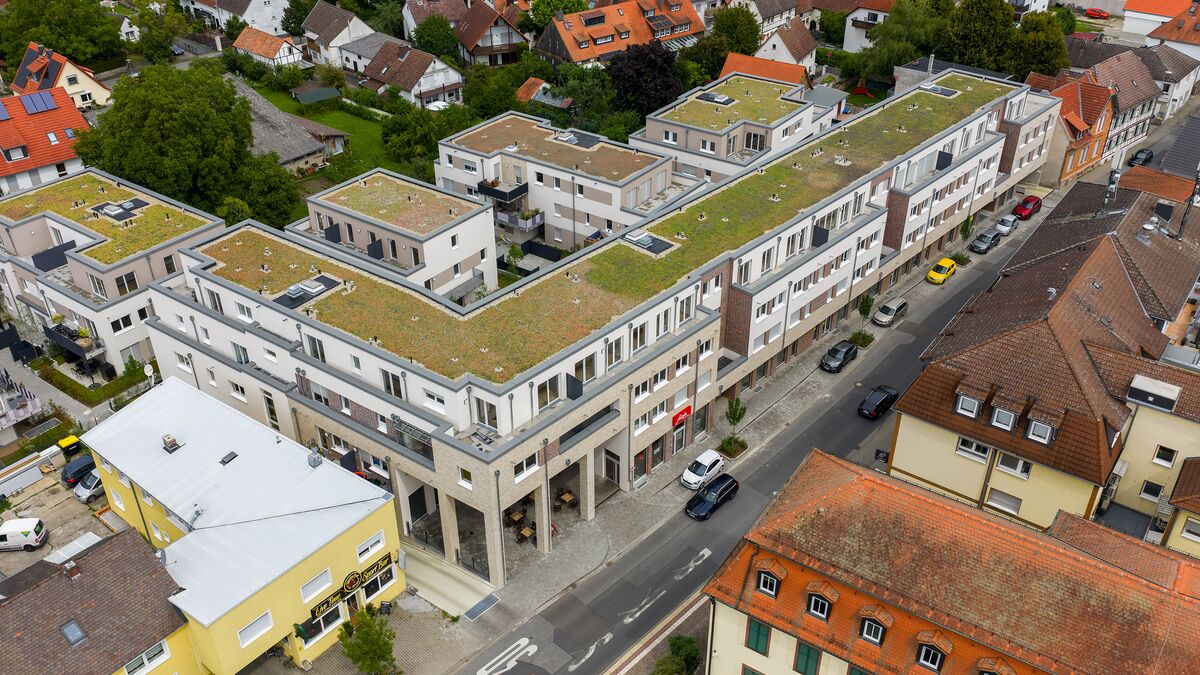

Aerial view of the entire QUARTIER AM JAGDSCHLOSS site

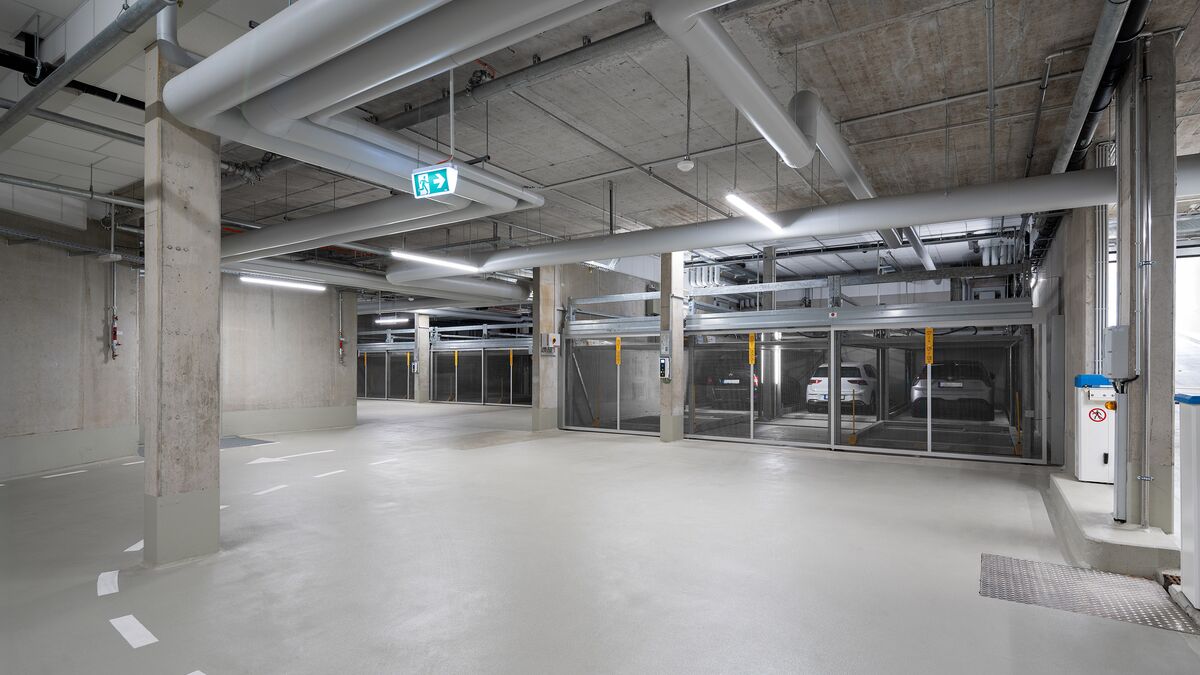

Overview of the WÖHR Combilifts in the underground car park (full view)

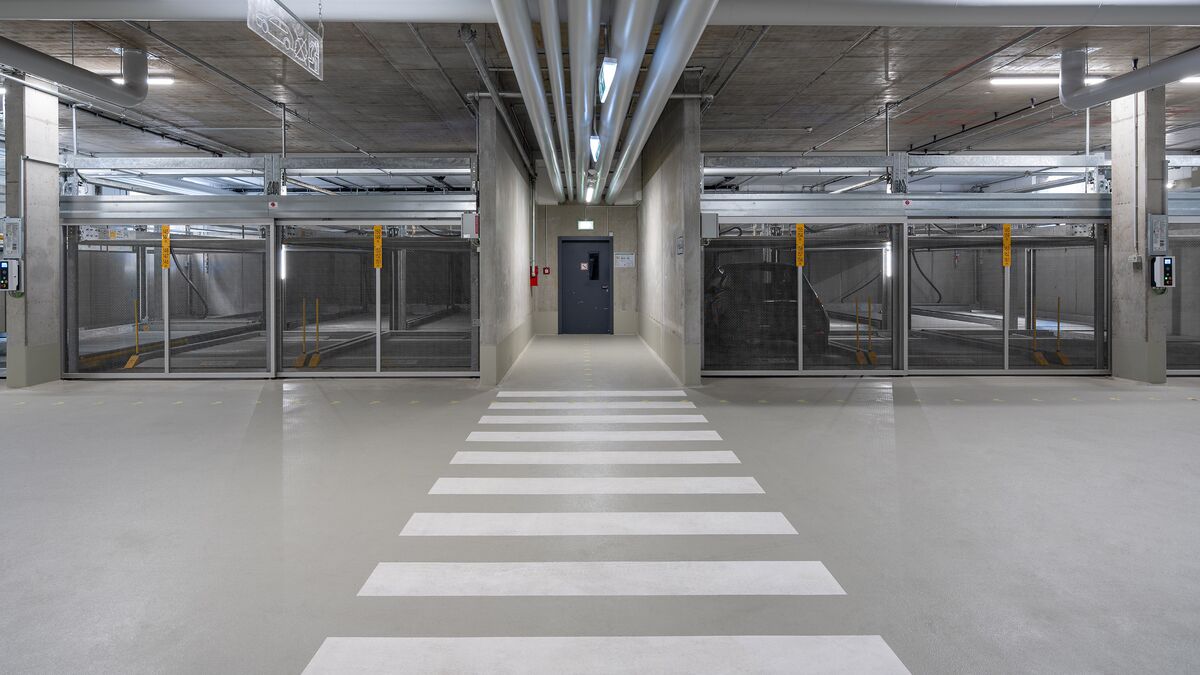

Front view of the parking systems, looking towards the underground car park exit
Entrance area to the underground car park with the parking systems

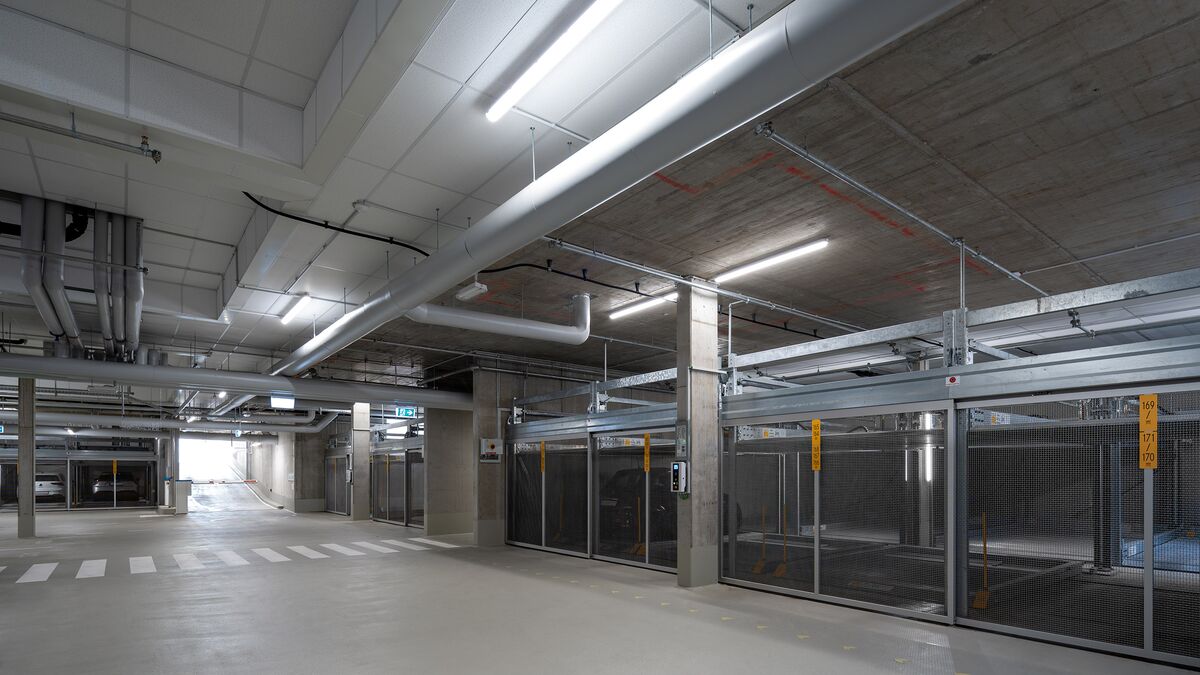

View of the aisle in the underground car park between the parking systems on either side
Aerial view of the entire QUARTIER AM JAGDSCHLOSS site
Overview of the WÖHR Combilifts in the underground car park (full view)
Front view of the parking systems, looking towards the underground car park exit
Entrance area to the underground car park with the parking systems
View of the aisle in the underground car park between the parking systems on either side

Quartier Am Jagdschloss / Bickenbach, Germany / COMBILIFT 543 & COMBILIFT 552

A new home in the heart of Bickenbach

QUARTIER AM JAGDSCHLOSS is a modern residential quarter in the heart of Bickenbach that combines contemporary living with a well-thought-out usage concept. A total of 74 rental apartments have been created in six individually designed new buildings.

The central location in Bickenbach combines quiet living with excellent infrastructure. All amenities for daily needs are within easy reach – many of them even directly in or in the immediate vicinity of the neighbourhood. In addition to the six apartment buildings, three commercial units were built on the ground floor of House A, contributing to the revitalisation of the neighbourhood.

Of the total of 171 car parking spaces in the neighbourhood, 124 are accommodated in the space-saving WÖHR Combilift systems, variants 543 and 552. Spread across 15 systems with different grid sizes, they offer residents convenient and efficient parking spaces – optimally adapted to the structural conditions and needs of the neighbourhood.

All buildings meet the KfW Efficiency House 55 standard and are equipped with a high-performance composite thermal insulation system – an important contribution to sustainability and energy efficiency.



Project specifications

  • 6x WÖHR Combilift 543
  • 9x WÖHR Combilift 552
  • 124 parking spaces
  • Platform load up to max. 2.0 t
  • Parking space width 2.50 m
  • Operation via RFID chip

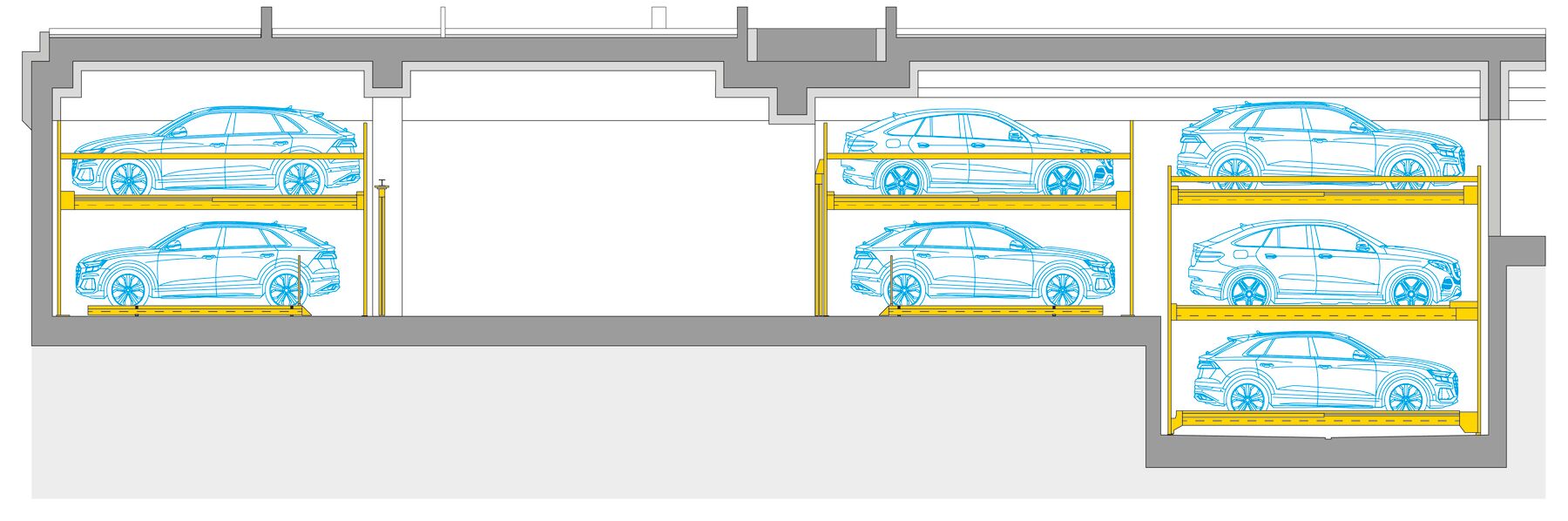

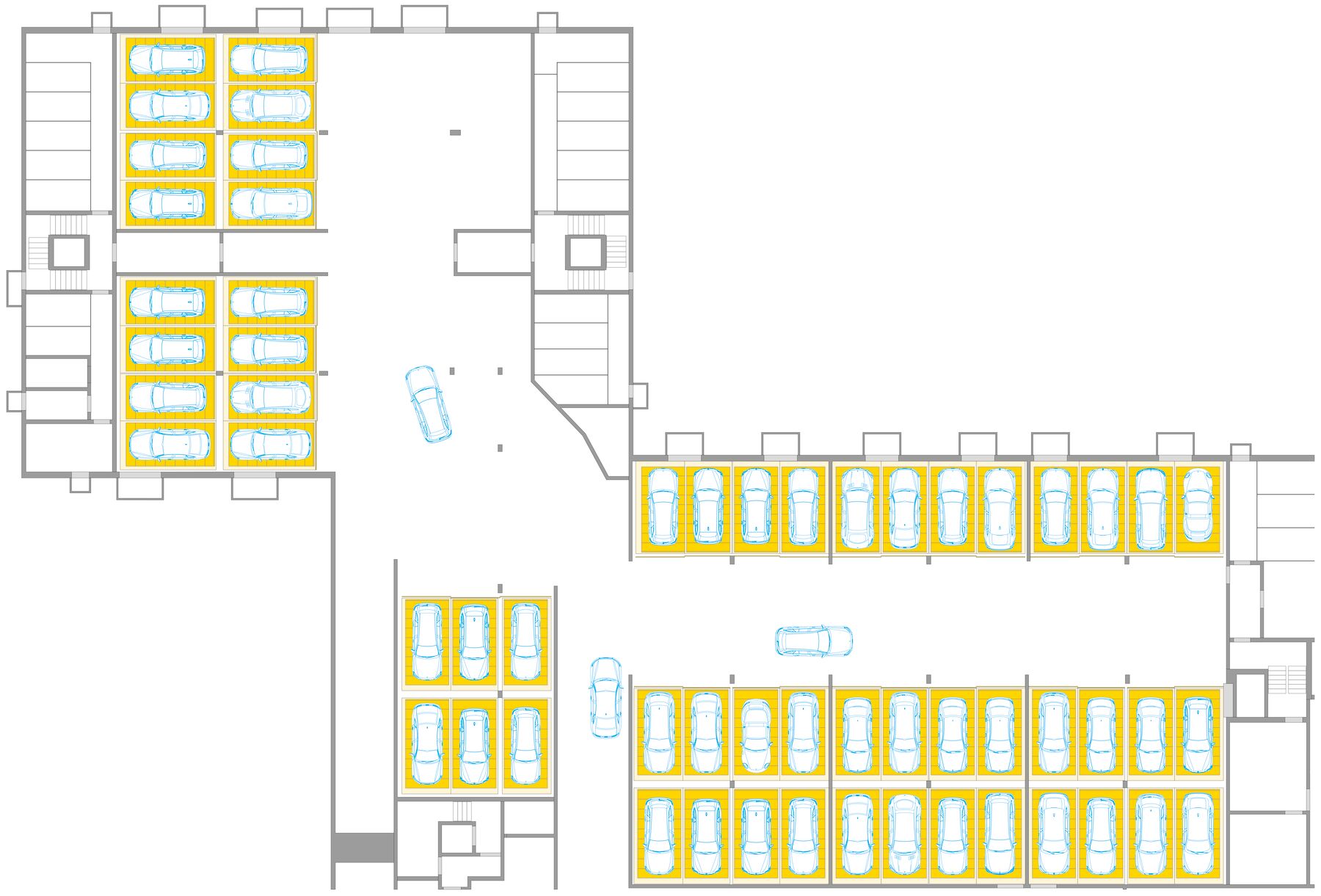

Project plans
